Development PCB for SIPEX SP4405

Development PCB for SIPEX SP4405
For a larger view click on the thumbnail
1,99 EUR
19 % VAT incl. excl. Shipping costs
Scaled prices
from 1 pcs.per 1,99 EUR
from 4 pcs.per 1,75 EUR
Add to cart

Product no.: PCB-for-SP4405


Products description

Properties

  • small pcb for EL-driver chip SP4405 in nsoic 8-pin package
  • dimensions: 20mm x 8mm x 1mm (+/-0.5mm)
  • tinned by HAL (hot air leveling)
  • 2 boreholes for the coil
  • coil solder area can be cut smaller for about 2mm if needed



Application

  • useful for your own designs and EL-applications with an SP4405 chip
  • watch the picture of the demo-circuit with the pcb, below.
  • notice please: we offer here just the pcb, not the demo circuit!

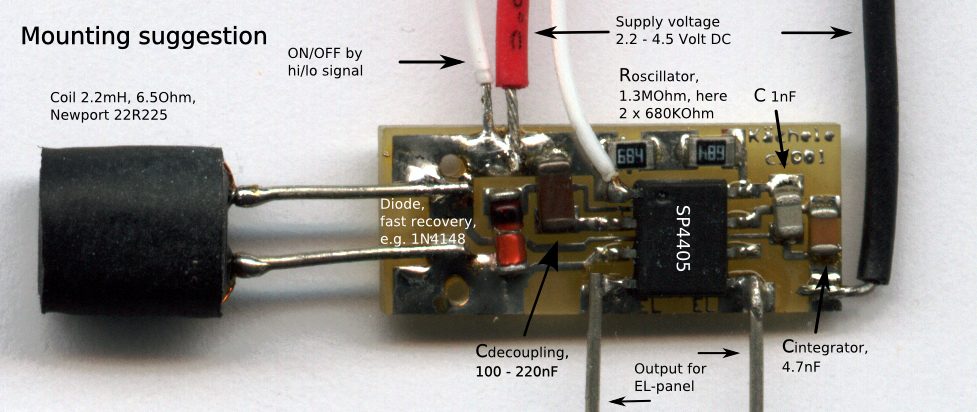

Mounting suggestion

Notice

  • We offer the SP4405 chip for this pcb, too.
  • The complete and detailled datasheet for the SP4405 can be found below this article for download.

File

Datasheet SP4405Download161.78 KB
