Properties
Main applications
Technical Data
Mechanical | Tolerance | |
Diameter | 13 mm | +/- 0.1 mm |
Length | 175 mm | +/- 1 mm |
Weight | 80 g | +/- 2 g |
Working temperature | 10 bis + 45°C | - |
Storing temperature | 0 bis + 60°C | - |
Electrical | ||
Working voltage DC | 2.4 - 3 V | +/- 0.2 V |
Working current DC | 25 mA | + 3 mA |
Power consumption | 64 mVA | +/- 10 % |
Optical | ||
Light colour red at | 635 nm | +/- 2 nm |
Laser output | max. 1 mW | - |
Angle of beam spread | 12° | +/- 4° |
Lifetime | 2000 h | - |
Additional notes

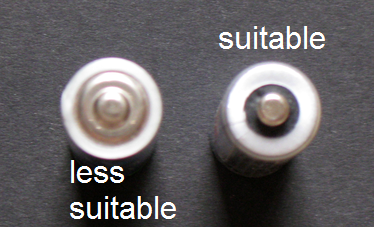

The laser pen is supplied WITHOUT batteries or rechargeable batteries, but in a sturdy, white cardboard tube, in which you can keep the pen very well. Please store in a dry place, avoid storing in high humidity areas (such as bathrooms). Do not expose batteries to prolonged storage. When selecting the batteries or rechargeable batteries, take those with a maximum insulated positive area, see picture for comparison.
Cleaning
Wipe with alcohol (firing alcohol) or gentle detergent, no abrasive or solvents. Leave to dry for a short time. Although the laser beam has a power of only 1 mW, it should be avoided that it reaches the human or animal eye completely or even partially! For cosmetic face treatments we strongly recommend the use of a light-tight eye cover for the customer. If you use the laser several times as a handler, we recommend a damping eye protection for the intense rays of the laser reflected by the skin of the customer.
